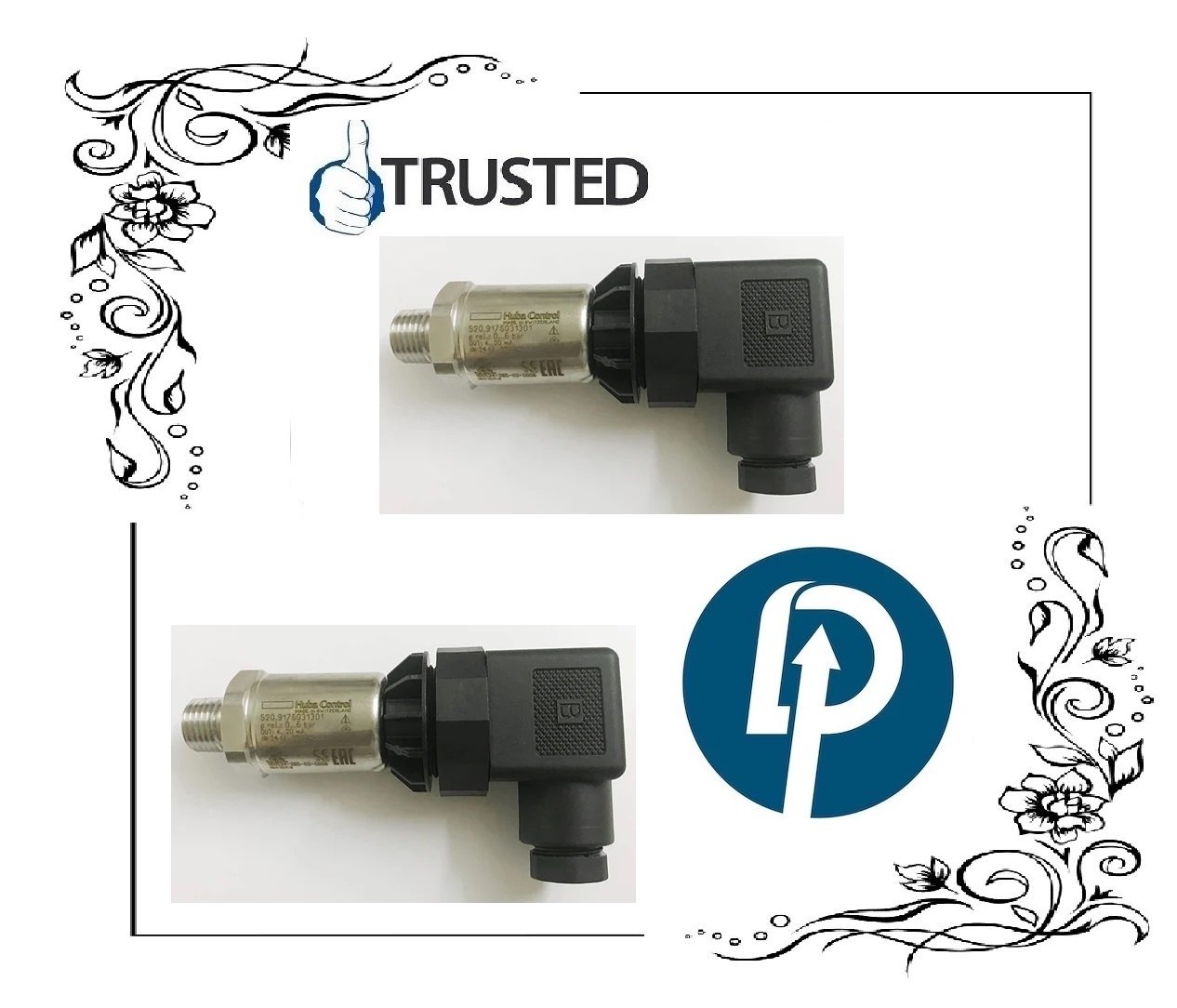

Huba # Pressure Transmitter Model 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

• Relative Pressure Transmitter
• Type – 520
• Manufacturer – HUBA CONTROL
• Model – 520.914S032401W
• RANGE – 0-500 BAR

The  Compact  Type  520  Pressure  Transmitter  Is  Based  Upon The  Huba  Control  Developed  Thick  Film  Technology  Where  The  Pressure Measuring Cell Is Fully Welded.

This  Transmitter  Meets The  High  Burst  Protection  Demands  And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

Pressure Range

• -1 … 9 bar / 0 … 2.5 – 1000 bar
• Compact,Rugged Construction
• Welded Without Sealing parts,No Elastomer Seals
• Large Selection Of Connections Available.
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

• Compact, Rugged Construction
• Large Selection Of Connections Available
• Welded Without Sealing Parts, No Elastomer Seals
• Medium: Liquids, Gases And Refrigerants (Including Ammonia)
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

SERIES	Type 520
PRESSURE RANGE	0 … 500 BAR
POWER SUPPLY	7 – 33 VDC
OUTPUT DC	4 – 20 mA
ELECTRICAL CONNECTION	M12x1
DESCRIPTION	Pressure Transmitter
PRESSURE CONNECTION	G 1/4
INDEX PROTECTION IP	IP67
ACCURACY	± 0.3 % fs
MEDIUM TEMPERATURE RANGE	-15 … +125 °C
RESPONSE TIME	< 2 ms, (1 ms typical)
MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM)	24 x 46.7 MM
CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,



 Aluminum Flexible Duct Pipe

With rich expertise, we offer our clients a wide range of Aluminum Flexible Duct Pipe which is constructed using special aluminum alloy. These prevents our product from corrosion and metal fatigue. The fabrication of our machines help us in producing a continuous lock seam. This allows the duct to be pulled open, compressed, bent and re-bent without any leakage. Further, these results in not being dry rot when heat aged. These can be installed with severe bends. Apart from this, these can also be installed in unlimited lengths while maintaining an unrestricted diameter. Our range is conveniently boxed in 5 foot, 10 foot and 15 foot lengths. It is compressed to nearly 3 times its original length. This ensures convenient shipping and handling.

Applications:

Aluminum Flexible Ducting can be used in the following applications:

• Heating air Conditioning
• Exhausting
• Fresh Air Intakes
• Ideal for use in clothes dryer, bathroom and kitchen exhausts

Features Benefits:

• Totally non-combustible Maximum operating temperature 435ºF
• Can be bent into any configuration No need for elbows
• Near zero permeability and leakage Reduces energy loss
• Will not sag between 6 foot supports Easy installation

 Flexible Ducts

We are into offering Flexible Ducts. These Flexible Ducts give high performance along with trouble free functioning has made our range a requisite requirement for various industries. These Flexible Ducts are used for the purpose of controlling angular position. Renowned for their durability, these Flexible Ducts are equipped with motor, control mechanism, high quality components which combine together to improve their overall performance.

Features:

• Quality specification
• Fully tested
• Trouble free performance

Diameter : 4" to 20"

Length : 25 ft.

Flexible Air Duct

Being the leading names in the industry, we are into offering a comprehensive range of Air Ducts that are available in varied dimensions and sizes. This Air Ducts is installed in carding and comber machines, blowers, washing machines and is acclaimed for exceptional fishing and durable standards. These are light in weight and are available with standard lengths. Moreover, we offer Air Ducts with customized solutions.

Features:

• Easy installation
• Corrosion resistance
• Light weight

Diameter : 4" to 20"

Length : 25 ft.

 Flexible Aluminum Duct Pipe

is constructed of a special aluminum alloy that prevents corrosion and metal fatigue. The machine fabrication produces a continuous lock seam that permits the duct to be pulled open, compressed, bent and re-bent without developing leakage. This duct will not delaminate or dry rot when heat aged. It can be installed with severe bends and in unlimited lengths while maintaining an unrestricted diameter. The product comes in conveniently boxed 5 foot, 10 foot and 15 foot lengths. It is compressed to nearly 3 times its original length for convenient shipping and handling i.e 3 meters compressed into 1 meter.

Applications :-

Flexible Aluminum Duct Pipe

can be used in a number of applications including: Heating air Conditioning, Exhausting and Fresh Air Intakes Ideal for use in clothes dryer, bathroom and kitchen cooker hood exhausts.
Features Benefits :-

Totally non-combustible Maximum operating temperature 435ºF

Can be bent into any configuration No need for elbows

Near zero permeability and leakage Reduces energy loss

Will not sag between 6 foot supports Easy Installation

Product Range :-

Diameters (inches)
3, 4, 5, 6, 8, 10 & 12

Standard Length (Feet)
5, 10 & 15

Aluminum Air Duct is made of aluminum. High flexibility and axial compressibility , extension rate is 1: 3.7
- Temperature range : -30° C + 140° C
- Maxim Air Flow: 30m/s
- Maxim working pressure: 10000 pa

Application
The aluminum Chimney air duct hose is especially ideal for high pressure and low pressure ventilation system, like range hood.
It can be fixed directly on the fitting. In case of fire or high temperature, there is no toxic gas.

ALUMINUM HOSE ( KITCHEN CHIMNEY HOSE )
